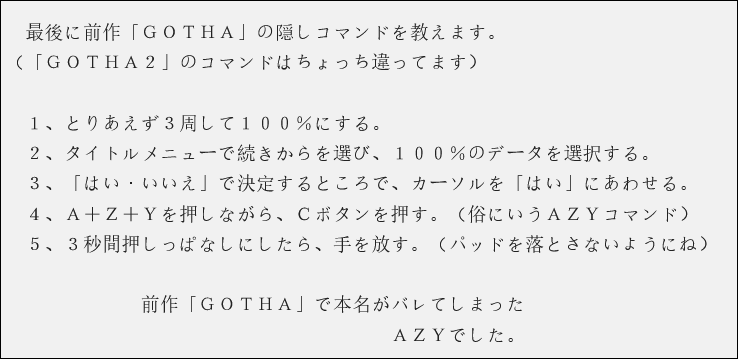

If you put the disc for the Saturn game Heir of Zendor into your PC’s CD-ROM drive, you’ll see a file called 99README.TXT. It contains messages from the game’s development staff, including one from “AZY” - the main planner and programmer.
Translated, this says something like:
Finally, here is a cheat code for the last game, GOTHA (the code for GOTHA 2 is slightly different).
First, complete three playthroughs to produce a 100% complete save.
From the title menu, select “Continue” and load your 100% save.
When the “Yes/No” confirmation prompt appears, hover the cursor over “Yes.”
Hold down A + Z + Y, then press the C button. (This is the “AZY Code.”)
Keep them held down for three seconds, then let go. (Don’t drop the controller!)
(English version via Google Translate)
Indeed, this works - if you follow those steps in the first game, you get a debug menu.
But AZY’s message also alludes to a code for Gotha 2, a.k.a. Heir of Zendor. What is it? Let’s check the game data to find out.
Accessing cheat mode
The function at 060383dc handles input for the main menu screen. When you select Start New Game, the function returns and execution resumes in the game’s outermost loop.
That outermost loop has a section that looks like this in Ghidra’s decompiler - I’ve added some labels.
selected_item = title_menu_handler_060383dc(title_arg_1);
if (selected_item == 2) {
init_new_game_06012920();
}
if ((unknown_cause_06080770 == 0xfbcf) || (unknown_cause_06080770 == 0xf9cf)) {
unknown_effect_0608a06a = 1;

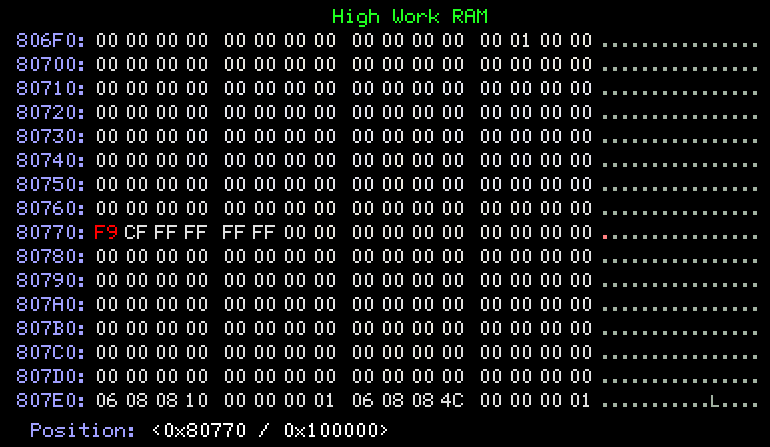

}What is this code checking? A look in Mednafen’s memory debugger holds the answer - the address at 06080770 changes when controller buttons are held down. By default, its value is 0xffff.
Each controller button clears a different bit on that value. To produce 0xfbcf, we need to AND it with A (0x400), Z (0x10), and Y (0x20). For 0xf9cf, the C (0x200) needs to be included.
Hmm, another AZY code? Let’s try it. The procedure is1:

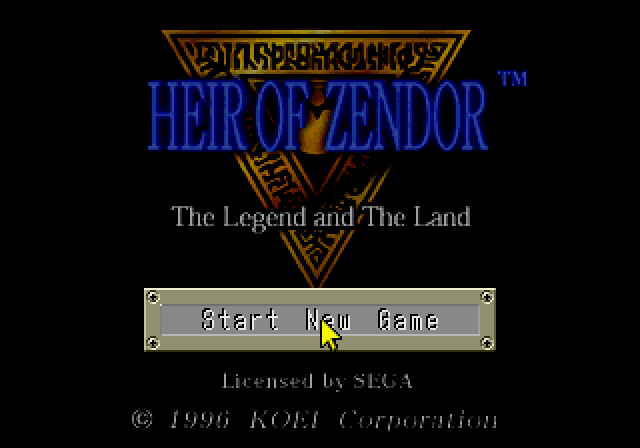

On the main menu, highlight Start New Game.
Hold down A+Z+Y and then add in C.
Keep the four buttons held down while the main menu disappears.

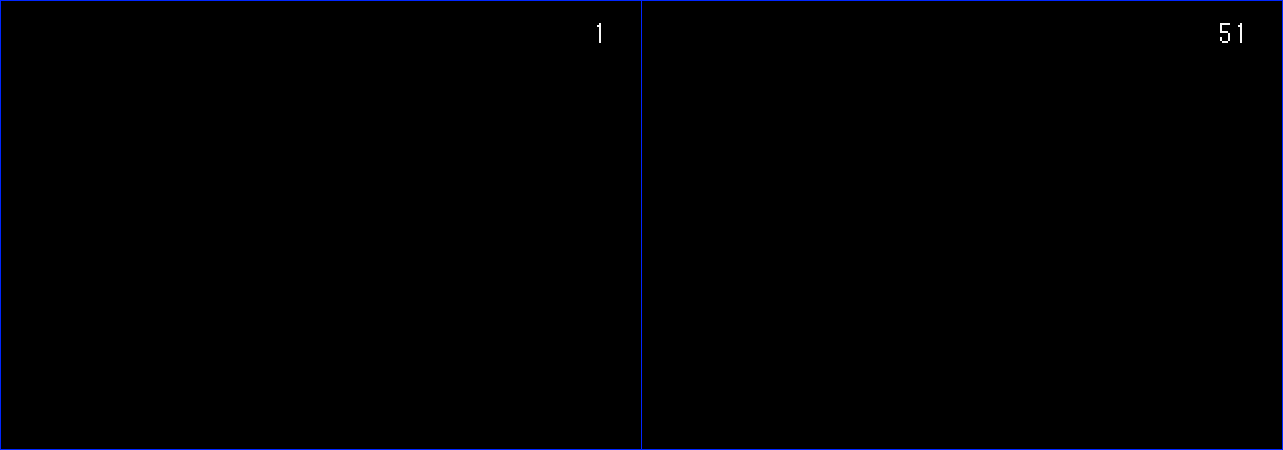

If you got it right, you’ll be presented with a black screen with a 1 in the top-right corner. Pressing A and C changes the value (the range is 1 through 51).
This is a stage select interface. Adjust the number to your liking and press Start to begin playing the corresponding stage.

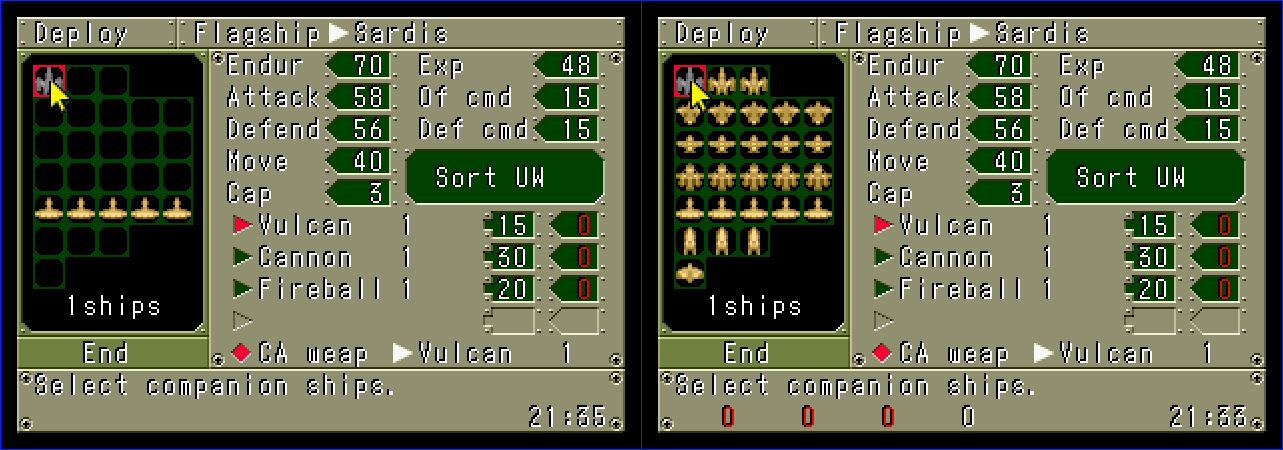

When the AZY code is enabled, you’ll have a full set of ships to choose from by default - it unlocks all of them.
It wasn’t released outside of Japan, but there was a version of Gotha 2 for PlayStation. Does it have an AZY code? Here’s its code that checks player input after the main menu function returns:
if (held_buttons_8012905a == 0x8b6) {
azy_effect_800dc4b4 = 1;
}This looks similar to the Saturn version’s code. But it’s a little different - the address that holds input stores 0x0000 by default. Holding controller buttons sets bits instead of clearing them. We need L1 (0x4) + R2 (0x2) + Start (0x800) + Square (0x80) + Triangle (0x10) + Circle (0x20).
Translating that into action:

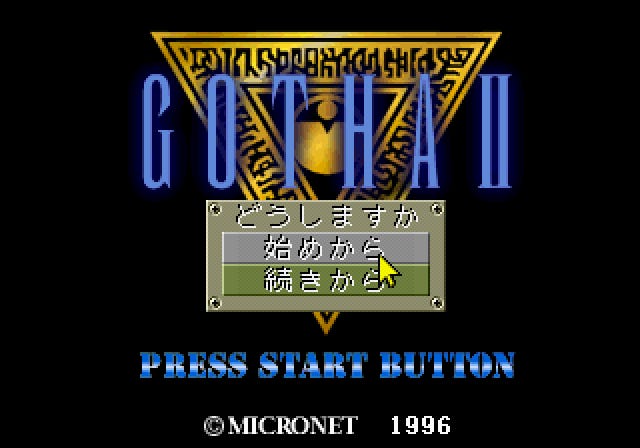

On the main menu, highlight 始めから (Start New Game).
Hold down L1+R2+Start+Square+Triangle and then add in Circle.
Keep the six buttons held down while the main menu disappears.

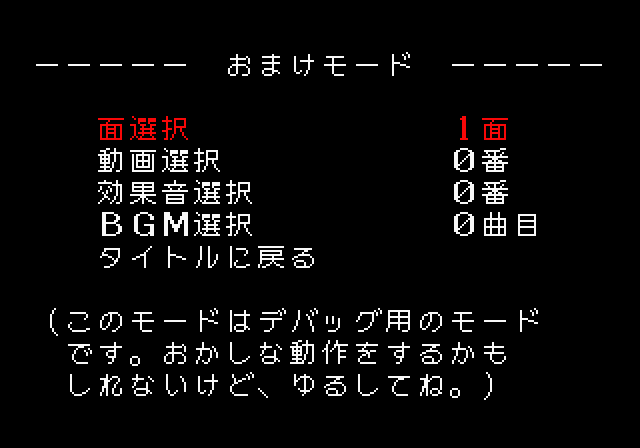

You’ll get the effects described above if you got it right.
Outro
AZY was right! The code for the second game is only slightly different. It doesn’t have as many effects - it only enables a stage select and some cheats, rather than a multi-featured debug menu. But it is easier to use, since you don’t need to clear the game before entering it.
Thanks for reading. Rings of Saturn will return with more soon.
The code makes it clear that the game only needs A+Z+Y, but it checks for A+Z+C+Y because you have to press C to make a selection on the main menu.
